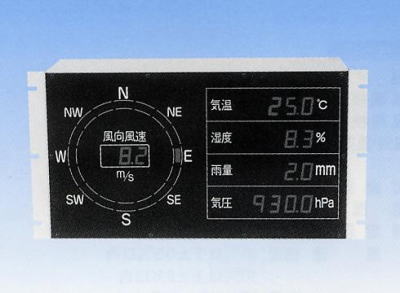

The DP-100 uses an LED display to show current values for wind direction, wind speed, temperature, humidity, precipitation, and barometric pressure based on a digital signal from a data recorder or a data processor such as the KPC-5000, or on an analog signal. |
|
Data displayed | Wind speed, wind direction, temperature, humidity, precipitation, barometric pressure |
Input | Serial current loop or analog voltage 0-1 V DC |
Display method | ‚k‚d‚c |
Text size | 25 mm (red) |
Update interval | 6 s |
Power source | 100 V AC ±10%, 50/60 Hz |
Display panel color | White labeling on purple background |
Usage conditions | Temperature: 0 to 40°C, Relative humidity: 90% (excl. condensation) |
Housing type | Wall-mounted |
Size/weight | Approx. 480 × 290 × 150 mm, 6.5 kg |
![]() ![]() ![]() ![]() ![]() ![]() |
