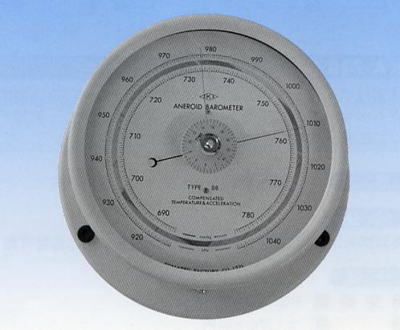

| The KA-711 amplifies the expansion and contraction of bellows and displays the detected changes in atmospheric pressure with a needle on an indicator dial. The KA-711 is constructed so as to be vibration resistant, resulting in almost no error even when the unit is tilted or shaken. |
|
| Model | Bellows-type |
| Measurement range | 913-1047 hPa |
| Accuracy | ±0.67 hPa |
| Minimum increment | 0.5 hPa |
| Size | Approx. 240 mm diam. × 95 mm |
| Weight | Approx. 2.6 kg |
  |
