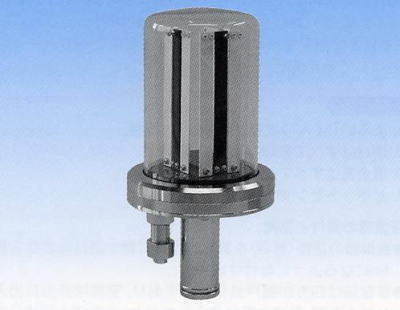

KBM-723 Bimetal Heliograph Sensor
PDF Catalog
Contact us about this item
Designed to measure the duration of sunshine, the KBM-723 sensor is installed outdoors and connected using a 2-pole cable to a recorder located indoors.
Performance 1. Threshold: 0.12 kW/m²
2. Contact capacitance: 3 V DC, 150 mA and 12 V DC, 30 mA
Size/weight 108 mm diam. × 210 mm, 1.2 kg
