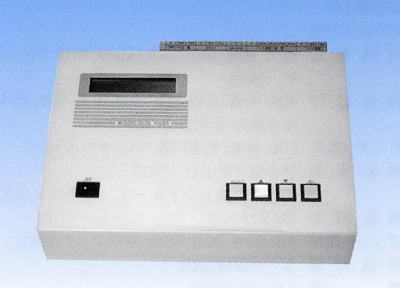

The KPC-300 is designed to collect data for
direct input to a personal computer. At 10-minute
intervals, the KPC-300 obtains data for eight
different inputs, including wind direction,
wind speed, temperature, humidity, precipitation,
solar radiation, geothermal temperature,
and cumulative snowfall. Data is then stored
on an internal memory. Stored data is converted
into an RS232C signal and directly output
to a personal computer. Installing the specially
designed software on the computer allows
for automatic data collection every 10 minutes.
The KPC-300 includes a monitoring function
that provides display of continuous, real-time
monitoring of wind direction and speed, as
well as generation of graphs and daily or
monthly reports. The KPC-300 also maintains
text data at 10-minute intervals. Data collection
is also possible via modem or mobile telephone. |
|
Inputs | Up to eight: wind speed/direction, temperature, humidity, precipitation, geothermal temperature, RS232C, cumulative snowfall, ultrasound wind speed, 0-1 V DC inputs (atmospheric pressure, solar radiation, etc.) |
Sampling times | 0.25 s or more (adjustable) |
Records | Every 10 min |
Output | RS232C for personal computer |
RS232C for digital indicator | |
Analog 0-1 V (optional) | |
Processing options | Maximum, mean, minimum, startup values, standard deviation available as option for wind speed/direction |
LED | Two 20-character lines, menu screen steup, data monitor, clock display |
Cont. recording | Approx. 20 days |
Power source | 100 V AC ±10%, 50/60 Hz, equipped to deal with power outages |
Usage conditions | Temperature: -20 to 40°C, Humidity: 20 to 90% RH (non-condensing) |
Software | Windows98, Me, NT, 2000 |
Includes automatic data collection at 10-min intervals, real-time monitoring, graph processing (daily/monthly reports, saving of text data at 10-min intervals) | |
Size/weight | Approx. 240 × 200 × 80 mm, 3.5 kg |
![]() ![]() ![]() ![]() ![]() ![]() |
