OVERVIEW

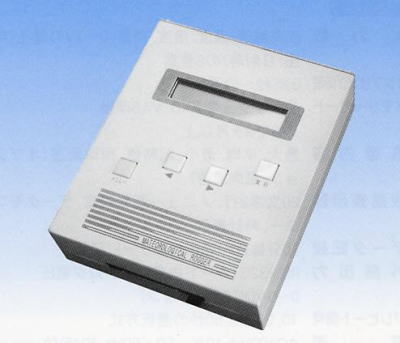

The KPC-500 is a meteorological data recorder designed for use with a battery or other DC power source. A variety of meteorological data can be recorded over an extended period by simply connecting sensors for wind speed and direction, temperature, humidity, precipitation, atmospheric pressure, solar radiation, or the like to the KPC-500, which records the data on an internal memory card. Recorded data can be transferred to a personal computer via the card, a modem, or a mobile telephone. Generating daily or monthly reports and graphs is easy with the KPC-500.

SPECIFICATIONS
Inputs Up to eight: wind speed/direction, temperature, humidity, precipitation, geothermal temperature, RS232C, cumulative snowfall, ultrasound wind speed, 0-1 V DC inputs (atmospheric pressure, solar radiation, etc.)
Sampling times 0.25 s or more (adjustable)
Memory card Flash-type JEID V4.5, 6 months or more with 1 MB
Processing options Maximum, mean, minimum, startup values, standard deviation available as option for wind speed/direction
LED Two 20-character lines, menu screen steup, data monitor, clock display
Data records Recorded to card and memory every 10 minutes
External output RS-232C (card content)
Analog voltage 0-1 V DC (optional)
Preheat signal 10, 20, 30 or 60 s (adjustable)
Power source 6-15 V DC, 13 mA (sampling)/1 mA (stand-by)
Usage conditions Temperature: -20 to 40°C, Humidity: 20 to 90%
Size/weight Approx. 150 × 180 × 50 mm, 1.3 kg
