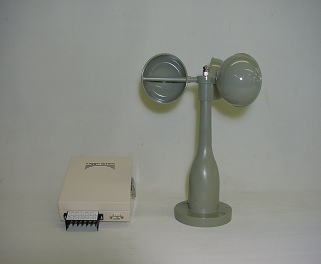

| Thanks to its excellent energy-saving properties,
the alkaline battery-powered KPC-60 can be
used to reliably record data over an extended
time period even where there is no commercial-level
power source. The measured data is recorded to internal
flash memory, from where it is easily collected
via mobile or landline telephone or satellite
links. Further, because data is so easily collected,
analyzing data and generating daily, monthly,
or yearly reports and graphs is easier than
ever before. Equipped to reliably operate at temperatures
between -20°C and 40°C, the KPC-60 is ideal
for a variety of commercial, industrial,
and research uses. |
|
| Logger system | |
| Model type | KPC-60 |
| Input | Wind speed |
| Accuracy | ±0.1%FS |
| Recording intervals | 1 to 60 minutes |
| Memory | Flash memory |
| Output | RS-232C |
| IC card | Compact flash memory card |
| Applicable sensor | Wind speed sensor with 0-1 V output |
| Display | LCD 16 characters × 2 lines |
| Power source | AA alkaline batteries; external 12 V DC power source also possible |
| Usage conditions | -20 to 40°C (non-condensing) |
| Size | Approx. 160 × 180 × 50 mm |
| Weight | Approx. 1.3 kg |
| Wind speed sensor | |
| Sensor component | Cup-type AC generator |
| Startup threshold | Less than 2 m/s |
| Measurement range | 2 to 60 m/s |
| Weatherability | Winds of 90 m/s or greater |
| Output | 0-1 V DC at winds of 0-60 m/s |
| Size/weight | Approx. 304 mm diam. × 353 mm, 1.0 kg |
 |
