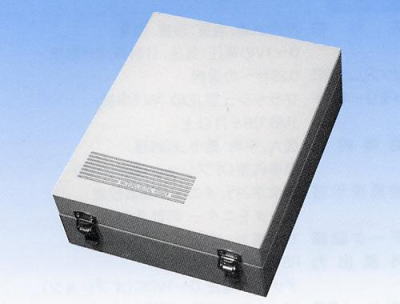

KPC-600 Meteorological Data Logger
	PDF Catalog Contact us about this item

OVERVIEW

The KPC-600 allows a variety of meteorological data--wind speed and direction for gentle breezes or gusting winds, temperature, humidity, precipitation, atmospheric pressure, solar radiation, duration of sunshine, or the like?to be recorded over an extended period by simply connecting data sensors to the KPC-600, which records the data on an internal memory card. Recorded data can be transferred to a personal computer directly, or via the card, a modem, or a mobile telephone. Generating daily or monthly reports and graphs is easy with the KPC-600.

SPECIFICATIONS

Inputs	Up to eight: wind speed/direction, temperature, humidity, precipitation, 0-1 V DC inputs (atmospheric pressure, solar radiation, etc.)
Sampling times	0.25 s or more (adjustable)
Memory card	Flash-type JEID V4.5, 6 months or more with 1 MB
Processing options	Maximum, mean, minimum, startup values, standard deviation available as option for wind speed/direction
LED	Two 20-character lines, menu screen steup, data monitor, clock display
Data records	Recorded to card and memory every 10 minutes
External output	‚q‚r-‚Q‚R‚Q‚b (card content), analog voltage 0-1 V DC (optional)
Preheat signal	10, 20, 30 or 60 s (adjustable)
Power source	100 V AC ±10%, 50/60 Hz, approx. 45 VA
Usage conditions	Temperature: -20 to 40°C, Humidity: 20 to 90%
Size/weight	Approx. 200 × 240 × 80 mm, 2 kg
