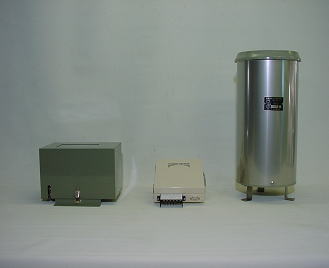

| Thanks to its excellent energy-saving properties,
the alkaline battery-powered KPC-61 can be
used to reliably record ground surface movement
and precipitation data over an extended time
period even where there is no commercial-level
power source. The measured data is recorded
to internal flash memory, from where it is
easily collected via mobile or landline telephone
or satellite links. Further, because data
is so easily collected, analyzing data and
generating daily, monthly, or yearly reports
and graphs is easier than ever before. Equipped
to reliably operate at temperatures between
-20°C and 40°C, the KPC-61 is ideal
for a variety of commercial, industrial,
and research uses. |
|
| Logger system | |
| Model | KPC-61 |
| Inputs | Ground surface movement, precipitation |
| Accuracy | ±0.1%FS |
| Recording intervals | 1 to 60 minutes |
| Memory | Flash memory |
| Output | RS-232C |
| IC card | Compact flash memory card |
| Applicable sensors | Ground surface movement: potentiometer Precipitation: tipping bucket rain gauge |
| Display | LCD 16 characters × 2 lines |
| Power source | AA alkaline batteries External 12 V DC also possible |
| Usage conditions | -20 to 40°C (excluding condensation) |
| Size | Approx. 160 × 180 × 50 mm |
| Weight | Approx. 1.3 kg |
| Extensometer sensor | |
| Model | Z28D |
| Measurement range | 0 to 100 mm (standard) |
| Accuracy | ±0.25%FS |
| Size/weight | Approx. 248 × 207 × 170 mm, approx. 1.0 kg |
| Rain gauge | |
| Model | R1-5 (standard) |
| Inlet diameter | 200 mm |
| Single-tip volume | 0.5 mm |
 |
