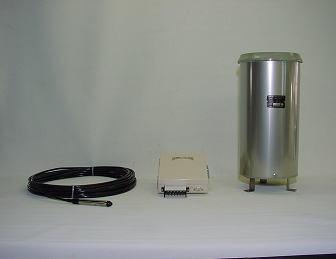

| Thanks to its excellent energy-saving properties,
the alkaline battery-powered KPC-62 can be
used to reliably record water level and precipitation
data over an extended time period even where
there is no commercial-level power source. The measured data is recorded to internal
flash memory, from where it is easily collected
via mobile or landline telephone or satellite
links. Further, because data is so easily collected,
analyzing data and generating daily, monthly,
or yearly reports and graphs is easier than
ever before. Equipped to reliably operate at temperatures
between -20°C and 40°C, the KPC-62
is ideal for a variety of commercial, industrial,
and research uses. |
|
| Logger system | |
| Model | KPC-62 |
| Input | Water level, precipitation |
| Accuracy | ±0.1%FS |
| Recording intervals | 1 to 60 minutes |
| Memory | Flash memory |
| Output | RS-232C |
| IC card | Compact flash memory card |
| Applicable sensors | Water level: semiconductor-controlled water
pressure Precipitation: tipping bucket rain gauge |
| Display | LCD 16 characters × 2 lines |
| Power source | AA alkaline batteries External 12 V DC also possible |
| Usage conditions | -20 to 40°C (non-condensing) |
| Size | Approx. 160 × 180 × 50 mm |
| Weight | Approx. 1.3 kg |
| Water level gauge | |
| Model | Water pressure (standard) |
| Measurement range | 0 to 10 m, 0 to 20 m (standard) |
| Accuracy | ±0.25%FS (standard) |
| Component material | SUS316 |
| Size | 17.5 mm diam. ×142 mm (excluding cable) |
| Rain gauge | |
| Model | R1-5 (standard) |
| Inlet diameter | 200 mm |
| Single-tip volume | 0.5 mm |
 |
