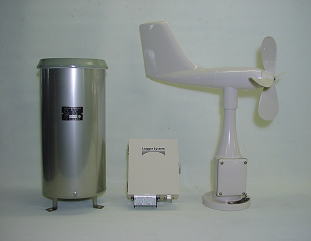

Logger system |
|
Model |
KPC-63 |
Input |
Wind speed/direction, precipitation |
Accuracy |
}0.1%FS |
Recording intervals |
1 to 60 minutes |
Memory |
Flash memory |
Output |
RS-232C |
IC card |
Compact flash memory card |
Applicable sensors |
Precipitation: tipping bucket rain gauge |
|
Wind direction: potentiometer |
|
Wind speed: DC generator |
Display |
LCD 16 characters × 2 lines |
Power source |
AA alkaline batteries; external 12 V DC also
possible |
Usage conditions |
-20 to 40 °C (non-condensing) |
Size |
Approx. 160 × 180 × 50 mm |
Weight |
Approx. 1.3 kg |
Wind speed/direction sensor |
Model |
W674-P1 propeller-type sensor |
Measurement range |
2 to 60 m/s |
Weatherability |
Winds of 90 m/s or greater |
Speed sensor |
Propeller-type AC generator (for high-speed
winds) |
|
Propeller-type DC generator (for low-speed
winds) |
Direction sensor |
Potentiometer-type vane, serial 5K (for
high-speed winds) |
|
Potentiometer-type vane, serial 10K (for
low-speed winds) |
Speed output |
0-1 V DC at winds of 0 to 60 m/s |
Direction output |
0-1 V DC at 0-360 |
Rain gauge |
Model |
R1-5 |
Inlet diameter |
200 o |
Single-tip volume |
0.5 o |
