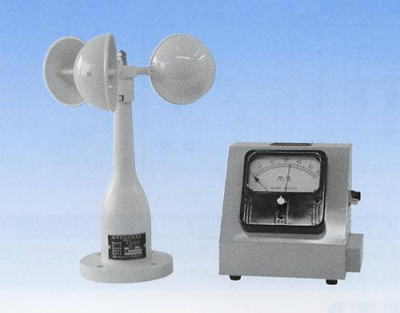

The KW-71-1 includes a sensor and an indicator
unit. The indicator can be set to sound an
alarm buzzer when wind speed exceeds a user-defined
speed. The KW-71-1 can also be connected
to operate other electrical devices when
the alarm speed is exceeded. |
|
Components | |
Sensor | 4-pole coreless AC generator |
Indicator | Rectifying voltmeter (meter relay) |
Measurement | 2-60 m/s |
range | Alarm signal speed range also 2-60 m/s |
Accuracy | ±0.5 m/s at winds of 10 m/s or less |
±5% at winds greater than 10 m/s | |
Weatherability | Winds of 90 m/s or greater |
Power source | 100 V AC, 50/60 Hz |
jSize/weight | Sensor: approx. 304 mm diam. × 353 mm, 1.0 kg |
Indicator: approx. 200 × 166 × 191 mm, 2.4 kg |
![]() ![]() ![]() ![]() ![]() ![]() |
