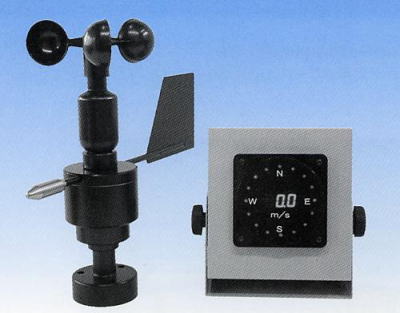

| Cup-type wind speed/direction sensor |
| Speed component |
Cup-type AC generator |
| Direction component |
Arrow-type mercury lead switch |
| Size/weight |
Approx. 334 × 410 mm, 1.6 kg |
| Digital wind speed/direction display |
| Wind speed |
|
| Measurement range |
2.0-60.0 m/s |
| Maximum readout |
99.9 (displays 0.00 at 100) |
| Display elements |
Red LED for both speed and direction |
| Hold time |
1 s |
| Wind direction |
|
| Measurement range |
16 cardinal points/360° |
| Display method |
16 cardinal point dial dimly lit all around,
with 1 or 2 lamps indicating direction brightly
lit |
| Accuracy |
Speed: ±0.5 m/s at winds of 10 m/s
or less; ±5% at winds greater than
10 m/s |
|
Direction: ±15°(at point of change) |
| Power |
100 V AC ±10 V; consumes approx. 2.5
W |
| Size/weight |
220 × 110 × 200 mm, 2.3 kg |
| Sensor-to-display electrical connection |
12-core shielded wire cable |
