Data Logger-equipped
Meteorological Observation Systems
With these systems, analog or digital output from observation sensors is input to a data logger, with converts all signals to digital data. That data is then stored in the data logger internal memory or written to a flash memory card. Recorded elements include wind speed and direction, temperature, humidity, precipitation, and voltage (snow accumulation, barometric pressure, pulse values are also available as options). By connecting the data logger to a personal computer and using specially designed application software, the instantaneous and 10-minute average values can be collected in RS232C format and either displayed on screen or printed. Three different options are available for the connection between the data logger and PC: direct connection, connection via a modem, or connection via a card reader.
The data logger can store from approximately one month to six months of data (varies depending on model.)

Meteorological
Observation
Sensors

Anemometer/
Wind Vane



Rain Gauge

Thermometer/
Hygrometer


Data Loggers
KPC-300
Data stored in internal memory
AC/DC power
Records up to 8 elements
KPC-500
Data stored on memory card
DC power
Records up to 8 elements
KPC-600
Data stored on memory card
AC/DC power
Records up to 8 elements
KPC-61
Data stored in internal memory
AC/DC power
For use w/rain gauge & extensometer
KPC-62
Data stored in internal memory
AC/DC power
For use w/rain & water level gauges
KPC-63
Data stored in internal memory
AC/DC power
For use w/wind speed & direction sensors
Direct Connection






Modem Connection
@@
Public Telephone
Lines


Mobile Telephone Connection
@@








Take card with stored data to computer location
RS232C Direct Connection
On-site data logger and PC are directly connected. Specially designed application software collects and displays instantaneous and 10-minute average values.
Modem Connection
@
Data logger is connected to PC via a modem located at the observation location and public telephone lines. Specially designed application software collects and displays instantaneous and 10-minute average values.
Card Reader Connection
PC is connected to a card reader. Specially designed application software on the PC records and displays data stored on a memory card in the card reader.

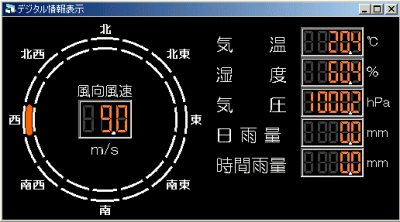

Application Software Display Samples
Main System Screen Real-time Monitor
Graph Display Daily Chart Monthly Chart
