Komatsu Factory Co.'s PC-ready anemometer/wind vanes are the perfect tool to bring wind speed and direction data to a personal computer. With a basic system, a propeller-type sensor is linked to a translator, which converts the RS-422 digital signal output by the sensor to an RS232C signal. The signal is then transmitted to a personal computer, which calculates instantaneous and 10-minute average values for wind speed and direction and displays the results on-screen. The computer can use the 10-minute average values to generate and display or print daily or monthly charts and wind roses. Systems with additional features are easily configured by including a data logger, a modem, or other modules.
The easy-to-operate processing application is supported by Windows98, Me, NT, and 2000.
As an optional function, Komatsu Factory Co. has also developed an information release system that connects via Web and mail servers to use the Internet.

　Basic Sensor-to-PC Connection　　　　　　

RS-422

RS232C
Translator

RS232C

Includes wind speed alert/alarm, daily & monthly chart printing functions

Optional Features

Simple I/O board addition allows
external alarm output
to buzzer or flashing light

Internet/intranet accessibility

LAN connection for data transmission
to a Web server and
alarm message transmission
to a mail server

The sensor and translator alone do not include a data storage function. This feature is available with the systems described below.

　Sensor/Data Logger/On-site PC Configuration

0-1 V

RS232C

PC located at
remote monitoring location

Includes wind speed alert/alarm,
daily & monthly chart
printing functions;
manual collection of
stored data possible

Optional Features

Simple I/O board addition allows
external alarm output
to buzzer or flashing light

LAN connection for
data transmission
to a Web server and
alarm message transmission
to a mail server

The data logger can store approximately one month of data, eliminating data loss when PC or application are off.

　Sensor/Data Logger/Modem/Central Location PC Configuration

0-1 V

Data written
to flash card memory

Modem

Public
telephone
lines

PC located at company headquarters or point other than location being monitored
　

Includes wind speed alert/alarm, daily & monthly chart printing functions; manual collection of stored
data possible
　

Processing of
flash card data

Optional Features

Data transmission and sharing via in-house LAN

The data logger can store approximately one month of data. A centrally located PC can use a modem to access and download the data via public telephone lines. While connected, a user can also monitor current wind conditions at the remote location in real time.

Monitoring System Application--Display and Printout Samples

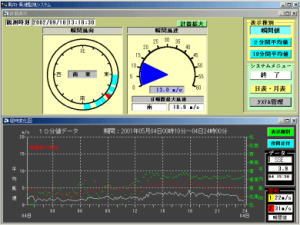

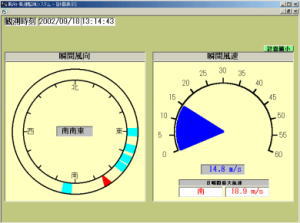

Menu Display	Monitor Closeup Display

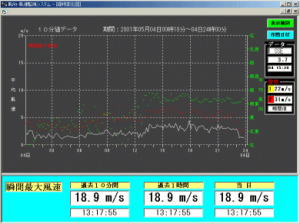

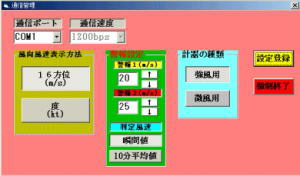

Variation Over Time Graph	Alarm Display System Menu

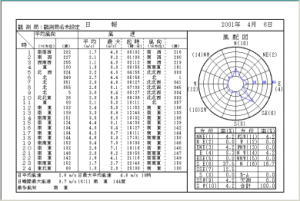

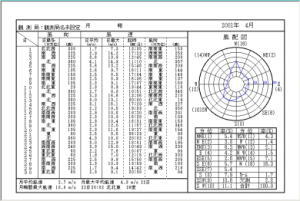

Daily Chart Printout	Monthly Chart Printout
